Project Description

  • 150ah lifepo4 battery
  • lead acid replace
  • 12 volt 150ah battery
  • 12v battery 150ah demension

12v 150ah Lithium Battery For Lead Acid Battery Replacement

Meet the OSM 12v lithium battery 150AH, the pinnacle of 12v deep cycle battery technology! With the active BMS protection, it can handle the cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and high temperature protection for increased performance and longer life.

150ah 12v lithium battery includes a dynamic BMS with:

  • Voltage: 12.8 v (12v system)
  • Battery cell Type: lifepo4 battery
  • Energy: 1875wh

Request Quotation

    12v lithium battery 150ah description

    Our 12 volt 150ah lithium battery  has a long life span of 3000-5000 cycles. In our lab testing, after 3000 cycles, nearly 75-80% of the battery capacity still remain in applications recharging at 0.5C or lower. And we have seen life spans of well over 5000 cycles during the testing.

    YouTube Video Show of  150ah 12v lithium battery

    OSM lead acid replace battery

    Item 12.8V 150Ah
    Nominal Voltage 12.8Vdc
    C/20 rating usable amps 10V 160Ah
    Short circuit protection Yes
    Optimum Temperature Range 0℃ to +60℃
    Safety Protection Isolator 80℃
    Recommended charge current 30 – 50A
    Maximum charge current 100A
    Recommended charge voltage 14.4Vdc
    BMS charge cut-off voltage 15V
    BMS low voltage cut-off 8.5V-9V
    Continuous discharge current 100A
    Life Cycles 80% 2000 +
    Life Cycles 50% 5000 +
    Life Cycles 30% 8000 +
    Waterproof and dustproof Yes
    Certifications CE, IEC62619, CB, Rohs, ISO9001, ISO 14001

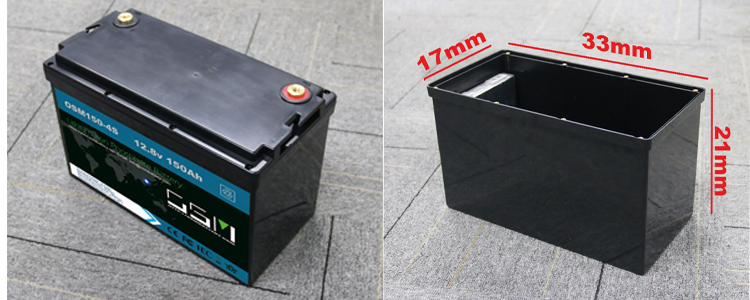

    Dimensions (LxWxH) 17mm*33mm*21mm
    Weight 16.5KG
    Terminal type M8
    Case material ABS
    Parallel connection Yes, all batteries must have the same voltage before parallel connection
    Options Series connection, Bluetooth

    PRODUCT DETAILS
    We focus on producing lithium battery packs

    12v 150ah lithium battery

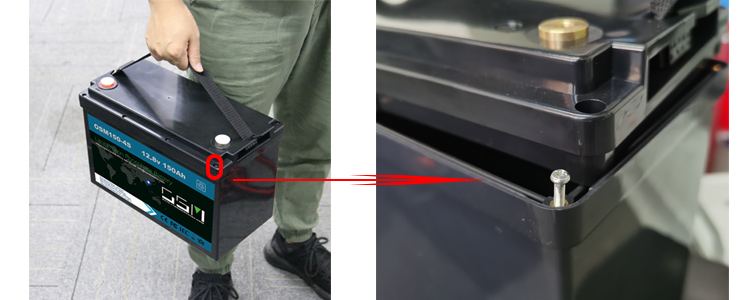

    With OSM 12v lithium battery, it’s easy to carry, comfortable feel. And the serviceable case design make the battery pack has a longer life.

    OSM lifepo4 battery detail

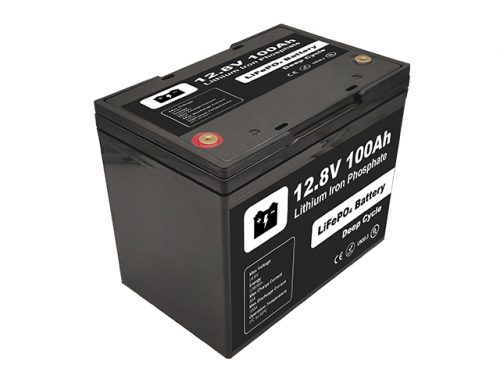

    12v 100ah detail

    SPECIFICATIONS

    Voltage12v 150ah battery demension
    12.8V

    Energy
    1875 Watts (WH)

    Size
    170*330*210 the smallest 12v 150ah lithium deep cycle battery on the market.

    Weight
    16.5 kg. That’s 70% lighter than an SLA lead-acid battery. A”drop in” replacement for lead acid batteries

    Storage capacity

    OSM 12v 150ah lead acid battery replacement battery provide consistent power for all 150 amp hours. This type  150ah lithium battery power output will not dramatically drop like similar sized SLA batteries, because this deep cycle battery 12v has a flat voltage curve, which means they have a steady power output as the battery discharges.

    Charger
    10A lifepo4 charger

    Notice
    This is used for deep cycle 12 volt 150ah lithium battery only, cannot for starting gasoline engines.

    Applications:
    Solar/Wind Power System
    RV Motor home
    Boat marine yachts
    Off-grid homes
    Recreational vehicles

    • Q: Can I get some samples?
      A: Yes, sample order is available for quality checking and market testing.
    • Q: What kind of cells used on this solar energy battery?
      A: We use original A grade prismatic cell inside. Send inquiry to know more about our cells. Certified by UL, CE, MSDS
    • Q: Do your 12v lithium battery pack comes with BMS?
      A: Yes, All our 12 volt 150ah lithium battery with electric BMS which can protect the battery from overcharging, over-discharging, over-current and avoiding short circuit.
    • Q. How about the delivery time?
      A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
    • Q. What are your terms of payment?
      A: T/T Alibaba trade assurance is the main payment terms, and other payment terms are negotiable. Please contact us, we’ll discuss the details.
    • Q: What’s your warranty terms?
      A: We offer a 5-year warranty for all our lifepo4 lithium batteries. And we’ve got the after-sale department in Europe to offer you localized services.
    • Q. Can you produce according to the samples?
      A: Yes, we offer ODM solutions. We can produce according to your samples or technical drawings. We can build the molds and fixtures. Please contact us for more details.
    • Q: How does your factory do regarding quality control?
      A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
