Project Description

  • 12v deep cycle battery 100ah
  • 100ah 12v lithium battery
  • 100ah 12v lithium battery size
  • 12v deep cycle battery 100ah

Deep Cycle Battery 12v Lithium Battery 100ah pack

Meet the OSM 100ah 12v lifepo4 deep cycle battery, the pinnacle of 12v deep cycle battery technology! With the active BMS protection, it can handle the cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and high temperature protection for increased performance and longer life.

100ah 12v lithium battery includes a dynamic BMS with:

  • Voltage: 12.8 v (12v system)
  • Battery cell Type: lifepo4 battery
  • Energy: 1280wh

Request Quotation

    12v lithium battery 100ah description

    Our 12v 100ah lithium battery lifepo4 deep cycle battery has a long life span of 3000-5000 cycles. In our lab testing, after 3000 cycles, nearly 75-80% of the battery capacity still remain in applications recharging at 0.5C or lower. And we have seen life spans of well over 5000 cycles during the testing.

    YouTube Video Show of  100ah 12v lithium battery

    12v 100ah battery

    Item 12.8v 100ah 12.8v 200ah 12.8v 300ah 12.8v 400ah
    Nominal Voltage 12.8v
    Capacity Ah 100ah 200ah 300ah 400ah
    Short Circuit Protection Yes
    Optimum Temperature 0℃~ 60℃
    Safety Protection Isolator 80℃
    Recommended Charge Current 30-50A
    Maximum Charge Current 100A
    Recommended Charge Voltage 14.4Vdc
    BMS Charge Cut-off Voltage 15V
    BMS low Voltage Cut-off 8.5-9V
    Continuous Discharge Current 100A
    Life Cycle 5000+
    Waterproof And Dustproof Yes
    Certifications CE,IEC62619,CB,Rohs,ISO9001,ISO1401
    Dimensions 255*165*210mm 485*170*240mm 380*300*220mm 480*300*220mm
    Weight 12kg 23kg 35kg 46kg
    Case Material ABS ABS Metal Metal
    Parallel Connection Yes,all batteries must have the same voltage before parallel connection
    Optional Series connection, Bluetooth

    PRODUCT DETAILS
    We focus on producing lithium battery packs

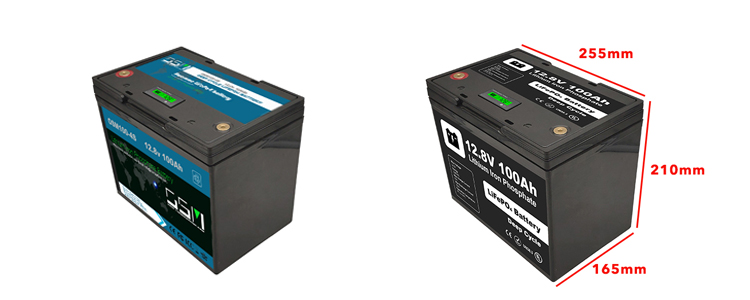

    12v 100ah dimension

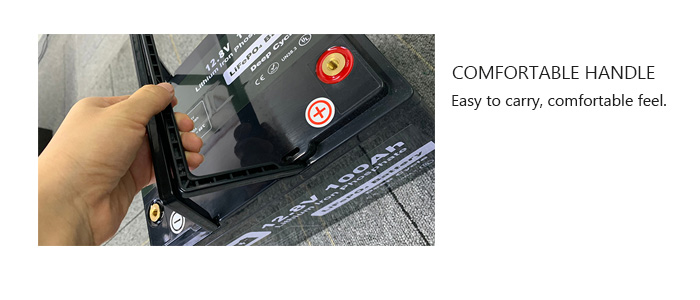

    12v 100ah detail Easy carry design

    SPECIFICATIONS

    Voltage12100-2
    12.8V

    Energy
    1280 Watts (WH)

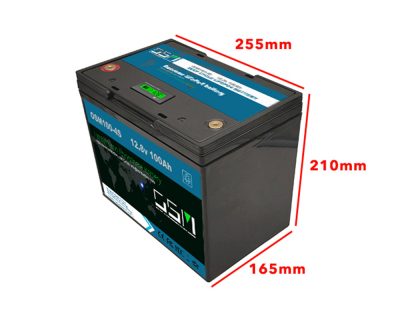

    Size
    255*165*210 the smallest 12v 100ah lithium deep cycle battery on the market.

    Weight
    10 kg. That’s 70% lighter than an SLA lead-acid battery. A”drop in” replacement for lead acid batteries

    Storage capacity

    OSM 12v lithium battery 100ah provide consistent power for all 100 amp hours. This type 12v lithium battery power output will not dramatically drop like similar sized SLA batteries, because this deep cycle battery 12v has a flat voltage curve, which means they have a steady power output as the battery discharges.

    Charger
    10A lifepo4 charger

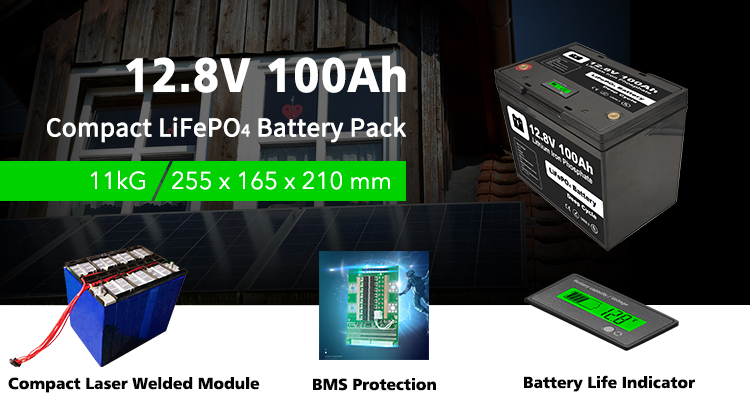

    12v 100ah component

    Notice
    This is used for deep cycle 12v battery only, cannot for starting gasoline engines.

    Applications:
    Solar/Wind Power System
    RV Motor home
    Boat marine yachts
    Off-grid homes
    Recreational vehicles

    • Q: Can I get some samples?
      A: Yes, sample order is available for quality checking and market testing.
    • Q: What kind of cells used on this solar energy battery?
      A: We use original A grade prismatic cell inside. Send inquiry to know more about our cells. Certified by UL, CE, MSDS
    • Q: Do your battery pack comes with BMS?
      A: Yes, All our batteries with electric BMS which can protect the battery from overcharging, over-discharging, over-current and avoiding short circuit.
    • Q. How about the delivery time?
      A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
    • Q. What are your terms of payment?
      A: T/T Alibaba trade assurance is the main payment terms, and other payment terms are negotiable. Please contact us, we’ll discuss the details.
    • Q: What’s your warranty terms?
      A: We offer a 5-year warranty for all our lifepo4 lithium batteries. And we’ve got the after-sale department in Europe to offer you localized services.
    • Q. Can you produce according to the samples?
      A: Yes, we offer ODM solutions. We can produce according to your samples or technical drawings. We can build the molds and fixtures. Please contact us for more details.
    • Q: How does your factory do regarding quality control?
      A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.

    Item Standard Test Conditions
    Battery Resistance ≤ 200mΩ Measure with 1kHz AC internal resistance tester at 50% SOC of the battery.
    Battery Capacity 200Ah ± 5% Charge and discharge in standard charge and discharge mode, and record discharge capacity.
    Charge Retention The discharge capacity is maintained no less than 85% of the rated capacity After standard charging, the battery shall be shelved for 28 days under ambient temperature of 25±5 ℃, and the discharge capacity shall meet the test requirements at room temperature with 0.2C continuous discharge current to the discharge cut-off voltage.
    Discharge recovery capacity is not less than 90% of the rated capacity Then after standard charging again, and discharge to the termination voltage with 0.2C continuous discharge current at the ambient temperature of 25±5 ℃. The discharge capacity should meet the test requirements.
