Project Description

  • 5kwh battery wall
  • 48v battery
  • 5 Kwh battery
  • 5 Kwh WALL battery

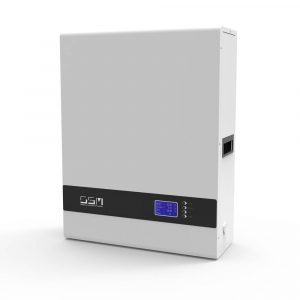

5.2kWh 48V 100Ah LiFePO4 Battery Pack for Home Solar Energy Storage

This 5.2 kWh power wall is perfect for Home Solar Energy Storage, which is designed as a stackable pack. And can add  more for obtain your ideal energy use. The lifepo4 battery pack chemistry is non-toxic and thermally stable, providing maximum longevity and safety.

This OSM WALL51200 for solar battery storage pack includes a dynamic BMS with:

  • Voltage: 51.2 v (48v)
  • Battery cell Type:Lifepo4 battery 100Ah
  • 2Energy:5.2 kWh one pack
  • Flexible parallel
  • Communication: CAN2.0, RS485, RS232

    home solar energy storage battery

    OSM Home Solar Energy Storage Battery Description

    OSM solar battery pack is a 48v 5.2 kWh lifepo4 power storage wall, with new environmental protection backup power system for short-term, high-rate discharge scenarios. This 48v battery equipped with high-performance BMS, compared with traditional batteries, OSM powerwall  for home solar energy storage  has a wide range of performance and application advantages. The leading chemical technology, BMS technology and system design capabilities will bring excellent performance and reliability for homeowners, and will also provide the best solutions for industrial applications.

    • Can be paralleled for up to 15 packs (consult factory for more than 10 packs)
    • Real time monitoring of cell Voltages, module/ branch currents, cell temperatures.
    • Individual battery branch control for extended availability.
    • Widely used in industrial backup power systems, UPS, Telecom, Data Center and so on.
    • Matched with different brand inverters include but not limited: BYD, Goodwe, Deye…Fronius, SolarEdge, SMA Sunny Boy,Sungrow,Huawei,FIMER,solax,delta, enphase, pylon tech,luxpower

    discription of 5kwh lifepo4 battery

    Battery Specifications LFPWALL51200
    Nominal Voltage 51.2v
    Nominal Capacity 100Ah
    Usable Capacity 5.12KWh
    Operating Voltage 48v-57.6v
    Charging Current 100A
    Discharging Current 100A
    Max Discharging Power 5000W
    Dimension(W/H/D) 580MM*450MM*170MM
    Weight 48KG
    IP Protection IP55
    Working temperature -10—+55 ℃
    Storage Temperature -20—+45 ℃
    Cycle Life 6000+
    System Connection Max 16 pcs in parallel
    Communication Port CAN2.0/RS232/RS485
    Design life 15 Years

    Pictures

    48volt solar battery pack

    Details
    The LED display and concise screen button design make battery management much easier.
    Practical design
    The quick start button allows you to quickly start the battery. The wire collection device saves you the trouble of messy wires.

    Lithium ion battery 5 kwh application

    OSM Ground  Eco lifepo4 battery pack has superior chemical and thermal stability, compared to other energy storage system lithium-ion batteries like those used in the Tesla Powerwall or LG Resu battery, Samsung sdi ess (those use more volatile lithium oxides). Overall, our Lithium Iron Phosphate batteries are the safest in the lithium-ion family.

    • Canbus, RS485 communication
    • Modules can be connected in parallel, paralleled modules communicate through RS485
    • Battery modules communicate with inverter via CAN interface
    • Compatible with CANBUS protocol, compatible with growatt, goodwe inverter
    • Features: The module supports in parallel, Best for energy storage, longer cycle life
    • Module Application. This custom lithium ion battery is easy to add and install, support in parallel, household, small industrial business area, small house, home.

    48v solar battery pack

    Video Show of 5 kwh solar battery pack

    OSM 48v lifepo4 battery pack  features

    Backup protection

    • Safety

    The battery in one pack can store energy for 5 kwh, detect power outages, and automatically become your  home energy source of lithium ion battery when there is a power outage. Unlike gasoline generators, the energy storage system battery keeps your lights and mobile phones charged without maintenance, fuel or noise. Pair with solar energy and charge with sunlight to keep your appliances running for several days.

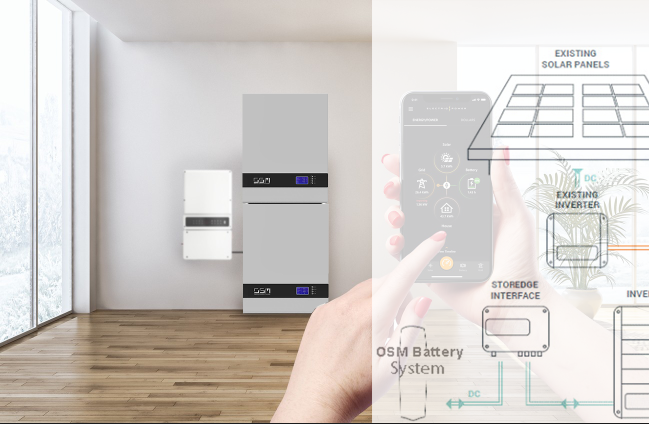

    48v home solar energy storage

    Modern and Compact

    • Design

    Simple installation and minimalist design makes the 5 kwh lithium ion battery perfectly matches various home styles. The compact, integrated structure is characterized by multi-functional installation options for indoor or outdoor spaces.

    Core Technology

    Our 48v lifepo4 battery pack equipped with top-quality battery cell like CATL, Lishen, Eve and CALB, etc.

    With pre-built smart BMS, provide the best service for monitoring the operation of the battery system.

    First-class battery design, makes the battery perfectly matches the various home styles.

    5 kwh battery certification

    Cell information

    5 kwh battery cell

    Cell lifespan

    5 kwh pack cell lifespan48v battery cell Module and pack

    • Q: Can I get some OSM 5 KWH battery samples?
      A: Yes, sample order is available for quality checking and market testing.
    • Q: What kind of cells used on this battery?
      A: We use original A grade prismatic cell inside. Send inquiry to know more about our cells. Certified by UL, CE, MSDS
    • Q: Do your 48v home battery pack comes with BMS?
      A: Yes, All our 5 kwh battery with BMS which can protect the battery from overcharging, over-discharging, over-current and avoiding short circuit.
    • Q. How about the delivery time?
      A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
    • Q. What are your terms of payment?
      A: T/T Alibaba trade assurance is the main payment terms, and other payment terms are negotiable. Please contact us, we’ll discuss the details.
    • Q: What’s your warranty terms?
      A: We offer a 5-year warranty for all our lifepo4 lithium batteries. And we’ve got the after-sale department in Europe to offer you localized services.
    • Q. Can you produce according to the samples?
      A: Yes, we offer ODM solutions. We can produce according to your samples or technical drawings. We can build the molds and fixtures. Please contact us for more details.
    • Q: How does your factory do regarding quality control?
      A: Quality always comes first. All our 48v lifepo4 battery pack  products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.

    Request an offer?

    If you are interested in our  5 kwh energy storage system battery or other products, please write down your comments or suggestions, we will answer your questions as soon as possible! Thank you for your attention!
