Description

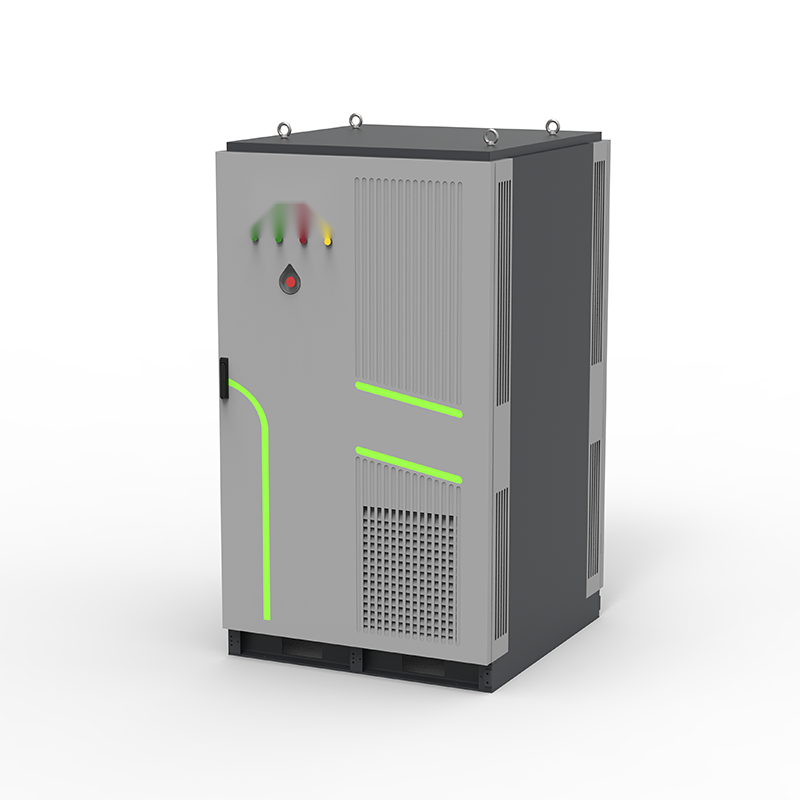

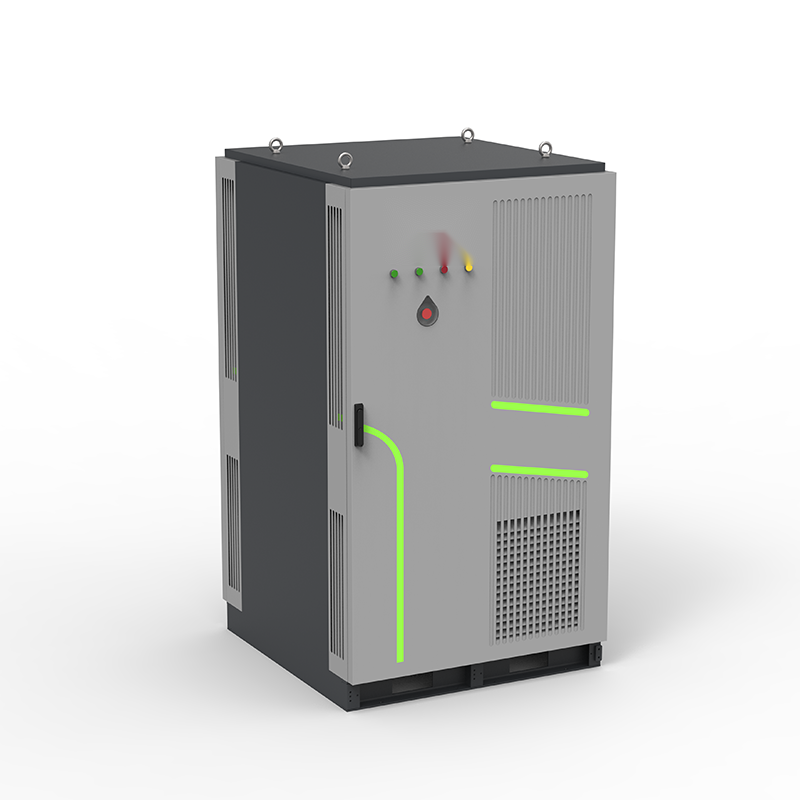

512V 160kWh All-in-one Stackable LiFePO4 Battery System: overview
The OSM 512V 160kWh All-in-one Stackable LiFePO4 Battery System is a 512V rated stackable all-in-one LiFePO4 battery, storing about 160 kWh of nameplate energy. It is engineered for all-in-one home energy storage and whole-home backup.
LiFePO4 (lithium iron phosphate) chemistry is the reference choice for this duty because it is thermally stable, keeps a flat voltage curve across most of the discharge, and tolerates daily deep cycling without the capacity walk-down that lead-acid suffers. The unit is assembled around Grade A cells and managed by a battery management system that enforces the published voltage, current and temperature limits from the factory.
Key features
512V 160kWh All-in-one Stackable LiFePO4 Battery System
- LiFePO4 chemistry for thermal stability and a flat discharge curve
- Integrated BMS guarding over-charge, over-discharge, over-current and temperature
Specifications
Electrical
| Nominal voltage | 512V |
| Nominal energy | 160 kWh |
Mechanical and environmental
Control, compliance and commercial
| OSM model | 50KW |
| BMS protection | Over-charge, over-discharge, over-current, short circuit, over-temperature |
Applications
| Application | Typical configuration | Why it fits |
|---|
| Solar self-consumption | PV array + hybrid inverter | Stores surplus daytime generation |
| Backup power | Critical-load panel | Bridges grid outages automatically |
| Off-grid systems | Scaled to daily consumption | Deep daily cycling without damage |
| Time-of-use arbitrage | Off-peak charging window | Shifts cheap energy to peak hours |
| Lead-acid replacement | Same nominal voltage | Lighter, longer lasting and maintenance-free |
- Whole-home solar backup
- All-in-one residential ESS with integrated inverter and EMS
- Three-phase and single-phase home systems
- New-build and retrofit installations
512V 160kWh All-in-one Stackable LiFePO4 Battery System — installed configuration example
Sizing this stackable all-in-one LiFePO4 battery for your project
512V 160kWh All-in-one Stackable LiFePO4 Battery System stores 160 kWh per unit. For a rough bank size, multiply by the number of units: 1 unit ≈ 160 kWh, 4 units ≈ 640 kWh, 8 units ≈ 1.28 MWh, 16 units ≈ 2.56 MWh. Confirm the parallel limit and the inverter charge current before you finalise the string.
System voltage. This is a 512 V unit, so it matches the 48 V / 51.2 V class of hybrid and off-grid inverters and can sit on the same DC bus as other modules of the same voltage class.
Why buy from OSM
- Plug-and-play stack grows from a single unit to a full home bank
- Integrated inverter, BMS and energy management in one cabinet
- Floor-standing and wall-adjacent installation with no rack needed
- App and portal monitoring for the homeowner and the installer
- Factory-direct pricing with OEM/ODM branding
OSM Battery manufactures and exports LiFePO4 batteries and energy storage systems for distributors, installers and project developers. Every order is built to the published specification, tested before dispatch, and shipped with the documentation your market needs.
512V 160kWh All-in-one Stackable LiFePO4 Battery System — application example
OEM and ODM customization
Beyond the standard configuration, OSM builds to order: enclosure colour and branding, nameplate and label artwork, packaging, cable and connector sets, communication protocol selection and matched charger or inverter bundles. Send the target specification and the artwork, and the engineering team returns a drawing and a quotation.
Frequently asked questions
What chemistry does this stackable all-in-one LiFePO4 battery use?
It uses lithium iron phosphate (LiFePO4 / LFP) cells with a nominal rating of 512V. LFP is chosen for this duty because it is thermally stable, holds a flat voltage curve for most of the discharge and tolerates daily deep cycling far better than lead-acid or NMC.
How much energy is that in practice?
The nameplate energy is about 160 kWh per unit. Usable energy is a little lower because most systems do not go to a full 100% depth of discharge — 90% is the usual planning figure, and that is what to use when you size the bank against daily consumption.
Can it be integrated with a third-party inverter?
Yes. Tell us the inverter model and we will confirm the communication protocol and the charge profile settings before you order, so the battery and the inverter agree on voltage limits and current limits from day one.
Can I expand the bank later?
Yes. Units of the same voltage and capacity class can be added later, which is why it pays to leave headroom in the inverter charge current and in the rack, cabinet or wall space. If you expect to grow, plan the final bank size now and build it in stages.
Do you supply samples and OEM branding?
Yes. OSM supplies single units and samples, and offers OEM/ODM on the enclosure, the label, the nameplate and the packaging. Send the artwork and the target specification and we will return a quotation with the lead time.
How is it shipped and what documents come with it?
Shipments go out as Class 9 dangerous goods with the UN38.3 test summary, the MSDS and the transport documents, packed for sea or air freight. Bulk orders can be consolidated so the container is loaded to suit your warehouse.
Request a quotation
Tell us the voltage, the capacity or the kWh you need, the inverter you are using and the quantity — the OSM team will come back with a price, the datasheet, the MOQ and the lead time. Samples and OEM trials are available.
Contact OSM Battery for wholesale pricing, OEM/ODM and project support.
