Description

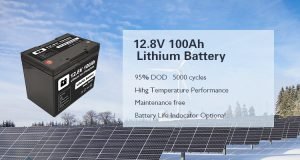

Meet the 100 Ah 12 V LiFePO4 Deep Cycle battery, the pinnacle of deep cycle lithium-ion battery technology! Our 100 amp hour, 12 volt battery weighs only 31 pounds and is capable of providing you power and relief from battery anxiety. Our batteries run in various systems, including marine, RV, van, and off-grid! It’s time to upgrade your heavy lead-acid batteries to LiFePO4 batteries and upgrade your lifestyle and ability to adventure!

Our 100 Ah 12 V LiFePO4 Deep Cycle battery has a life expectancy of 3000-5000 cycles* with a 100 Amp Continuous current, 200 Amp Surge Current (30 seconds), and ½ second surge for higher loads.

*Approximately 75-80% of the battery capacity will remain after 3000 cycles in applications recharging at 0.5C or lower. We have seen life spans of well over 5000 cycles in our lab testing.*

Our OSM-4S100 uses stable LiFePO4 chemical composition in prismatic cells and the same built-in battery management system (BMS) technology as our other products.

Using only the highest quality materials all OSM Batteries are designed and assembled in Shenzhen, China.

Product Details

Place of Origin:Guangdong, China

Brand Name:OSM
Model Number:OSM-12100
Battery type:lithium ion battery
Voltage:12v
Capacity:100ah
OEM/ODM:Warmly Welcomed
Payment:Paypal.TT.Western Union
Warranty:5YEARS
Application:BOATS, SUBMARINES, Electric Power Systems, Solar Energy Storage Systems
Certification:CE
Battery Size:lithium battery 100ah
Weight:10KG
Lithium battery 100ah rechargeable lithium iron phosphate 12v 100ah

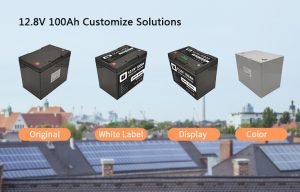

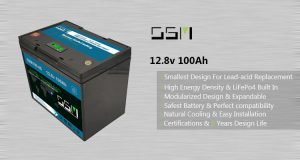

With the same energy li-ion battery pack 12v, OSM model is the smallest size. OSM lifepo4 12v lithium battery 100ah is possible to built in Bluetooth communication and also LED monitor( Bluetooth and LED monitor are optional choice, please contact us).

OSM 12 volt lithium ion battery

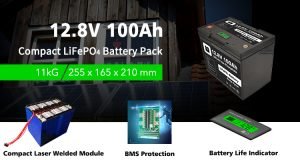

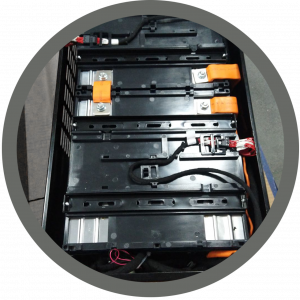

OSM lithium ion solar battery with factory price for sale. Which is different with battle born or expert-power 12v. Inside by 4S2P prismatic LiFePO4 cells. 5,000+ recharge cycles (roughly 8 year lifespan at daily use) vs. 500 for other lithium batteries or lead acid. It is a perfect drop in lead acid replacement battery pack. OSM battery 12v 100ah is best for RV/solar system/yacht/golf carts storage.

Battery SPEC

OSM 12v battery replaces your old battery system.

OSM battery 12v 100ah has a greater thermal stability and long-life span compared to other rechargeable batteries. Apart from longer lifespans these batteries are also not prone to overheating and have a greater tolerance to harsh environmental conditions. Like lead-acid rechargeable batteries lithium batteries are also composed of many cells. Buying OSM lithium battery 100ah is an extremely simple and efficient idea to save hundreds of your hard-earned dollars.
Item
   12.8v 100ah

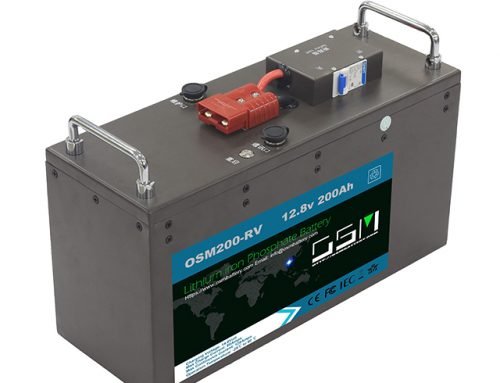

  12.8v 200ah
   12.8v 300ah
   12.8v 400ah
Nominal Voltage
                                                              12.8v
Capacity Ah
        100ah
      200ah
      300ah
     400ah
Short Circuit Protection
                                                          Yes
Optimum Temperature
                                                    0℃~ 60℃
Safety Protrction Isolator
                                                        80℃
Recommended Charge Current
                                                     30-50A
Maximum Charge Current
                                                       100A
Recommended Charge Voltage
                                                     14.4Vdc
BMS Charge Cut-off Voltage
                                                        15V
BMS low Voltage Cut-off
                                                      8.5-9V
Continous Discharge Current
                                                      100A
Life Cycle
                                                      5000+
Warranty
                                                      5 Years
Waterproof And Dustproof
                                                         Yes
Certifications
                     CE,IEC62619,CB,RoHS,ISO9001,ISO1401

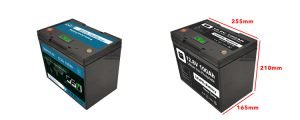

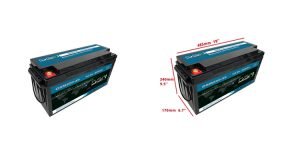

Dimensions
255*165*210mm
485*170*240mm
380*300*220mm
480*300*220mm
Weight
          12kg
         23kg
       35kg
        46kg
Case Material
          ABS
        ABS
       Metal
       Metal
Parallel Connection
Yes,all batteries must have the same voltage before parallel connection
Optional
Series connection,Bluetooth

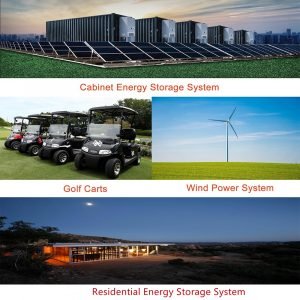

Application

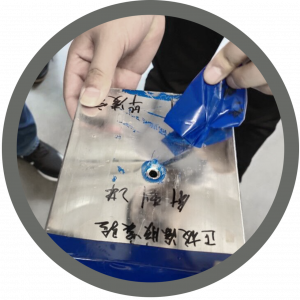

Safety Testing

Passed the safety testing with no fire, no explosion with stable chemical structure.

Company Introduction

OSM BATTERY

Leading custom lithium ion battery manufacturer. Shenzhen OSM energy technology Company limited Located in Shenzhen of China. The Battery pack production line and Cell production line located in ShangRao city of JiangXi province. OSM energy has established advanced experienced sales and service in Global market. Service for different industry like: solar energy storage system (ESS), RV, marine, boat, golf cart, AGV robot, EV Battery, Motorcycle and electronic bike battery, forklift battery and electric tricycle battery and 5G base station LiFePO4 battery. OSM now is one of major lithium battery pack manufacturers.
